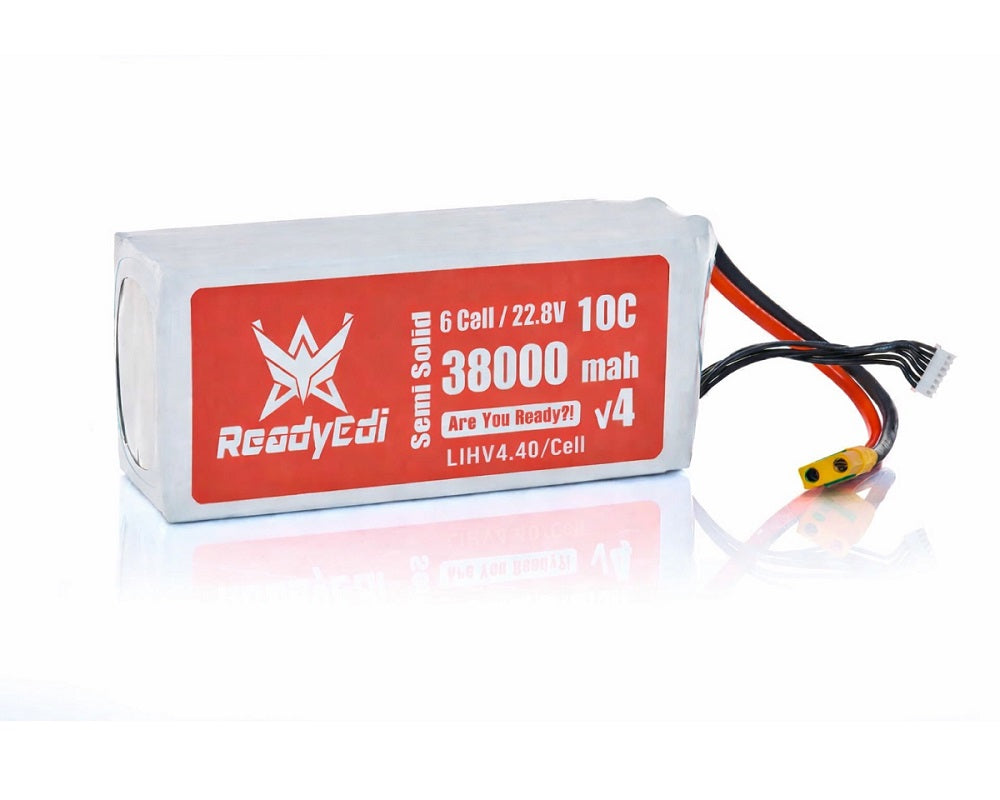

ReadyEdi V4 38000mAh 23.4V 10C 6S1P HV UAV Solid-State Lithium-Ion Battery Pack

ReadyEdi V4 38000mAh 23.4V 10C 6S1P HV UAV Solid-State Lithium-Ion Battery Pack

Aluminum side plates provide protection against mechanical damage while improving cell cooling and heat dissipation.

Energy Density: 520Wh/kg

Operating Temperature

Charging: 0°C to 45°C
Discharging: -10°C to 55°C

Battery Specifications

Model: RE-10C-38000-6S1PHV
Configuration: 6S1P HV
Capacity: 38,000mAh / 38Ah
Nominal Voltage: 23.4V
Maximum Charging Voltage: 26.4V, based on 4.4V per cell
Minimum Voltage: Depends on the permitted minimum discharge voltage of each cell
Nominal Energy: 889.2Wh
Continuous Discharge Rate: 10C
Maximum Theoretical Continuous Current: 380A
Dimensions: Approximately 69 × 75 × 195mm
Weight: Approximately 1,980g
Balance Connector: JST-XH, 7-pin
Discharge Connector: XT90 Anti-Spark
Recommended Charging Rate: 0.2C
Maximum Charging Current: 7.6A; normally limited to 7.5A

Our Advantages

High Energy Density:
The battery provides an excellent capacity-to-weight ratio and is specially adapted for UAV applications.

UAV-Specific Solutions:
Battery packs can be configured and optimized according to the power, capacity, weight, dimensions, and flight-time requirements of each UAV platform.

Advanced Battery Technology:
ReadyEdi specializes in high-power LiPo and solid-state lithium-ion UAV batteries. Selected battery models are available with discharge ratings of up to 150C.

Stable Performance:
Our battery technology is designed to provide stable and consistent discharge performance under demanding operating conditions.

Safety and Certification:
ReadyEdi and its manufacturing partners comply with applicable quality and transportation standards, including ISO 9001, MSDS, and UN38.3 certification.

Customer Benefits:
Customers receive priority service through our online shop, competitive pricing, and an extended warranty period.
