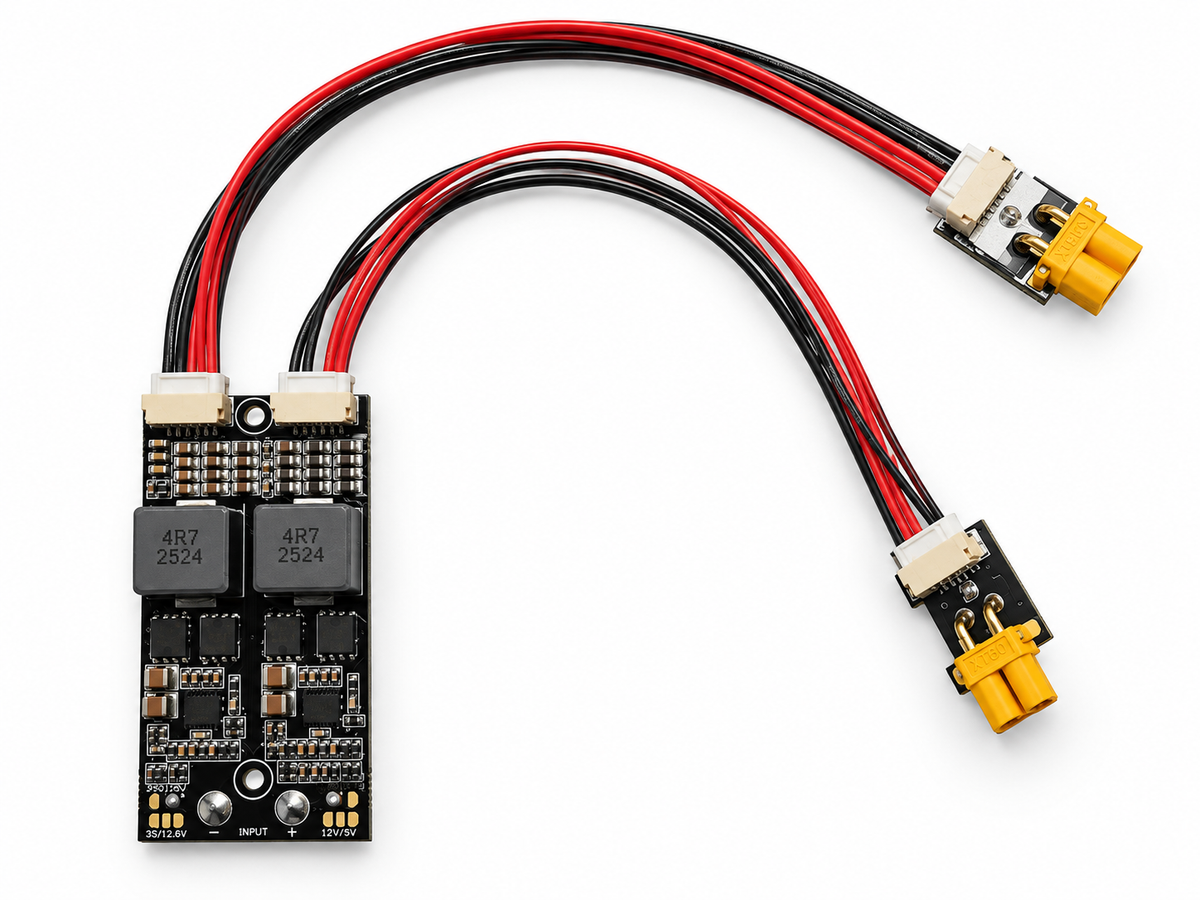

ReadyEdi 2-channel HV UBEC 7A (3-24S)

Overview

UBEC 7A (3-24S) is a synchronous step-down regulator from a high voltage or widely varying input supply. It draws the DC voltage from a 3-24S LiPo battery and drops the voltage to a level suitable for receivers and other electronic devices, and keeps providing a stable current output of up to 7Amp.

Features

• High efficiency DC-DC regulator chip for transfer efficiency of over 90%
• Adjustable output voltage (3.3V/5.3V/9.0V/12V/24V/28V/32V) applicable for devices with different voltages
• 2-channel

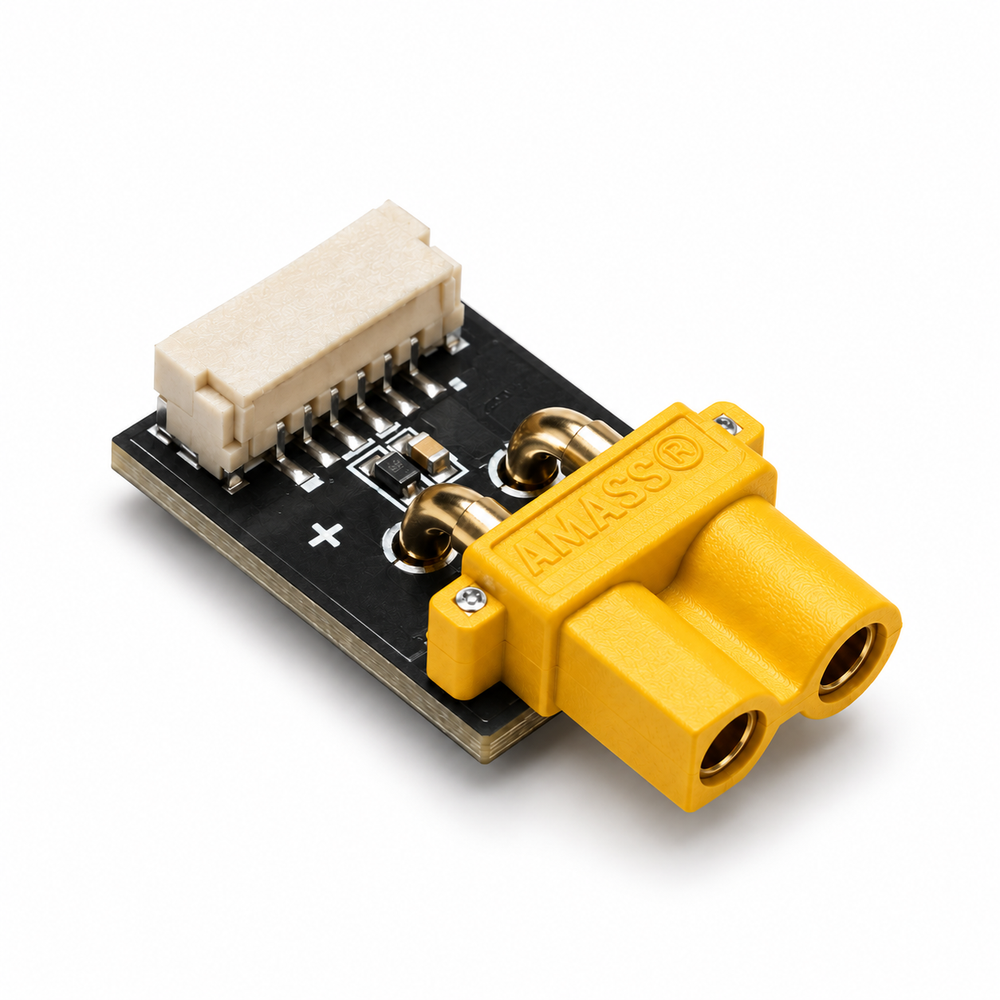

• XT30 output for high current devices

• Multiple protections including over-current, (output end) short circuit, overheat, and low-voltage cutoff 8.9V

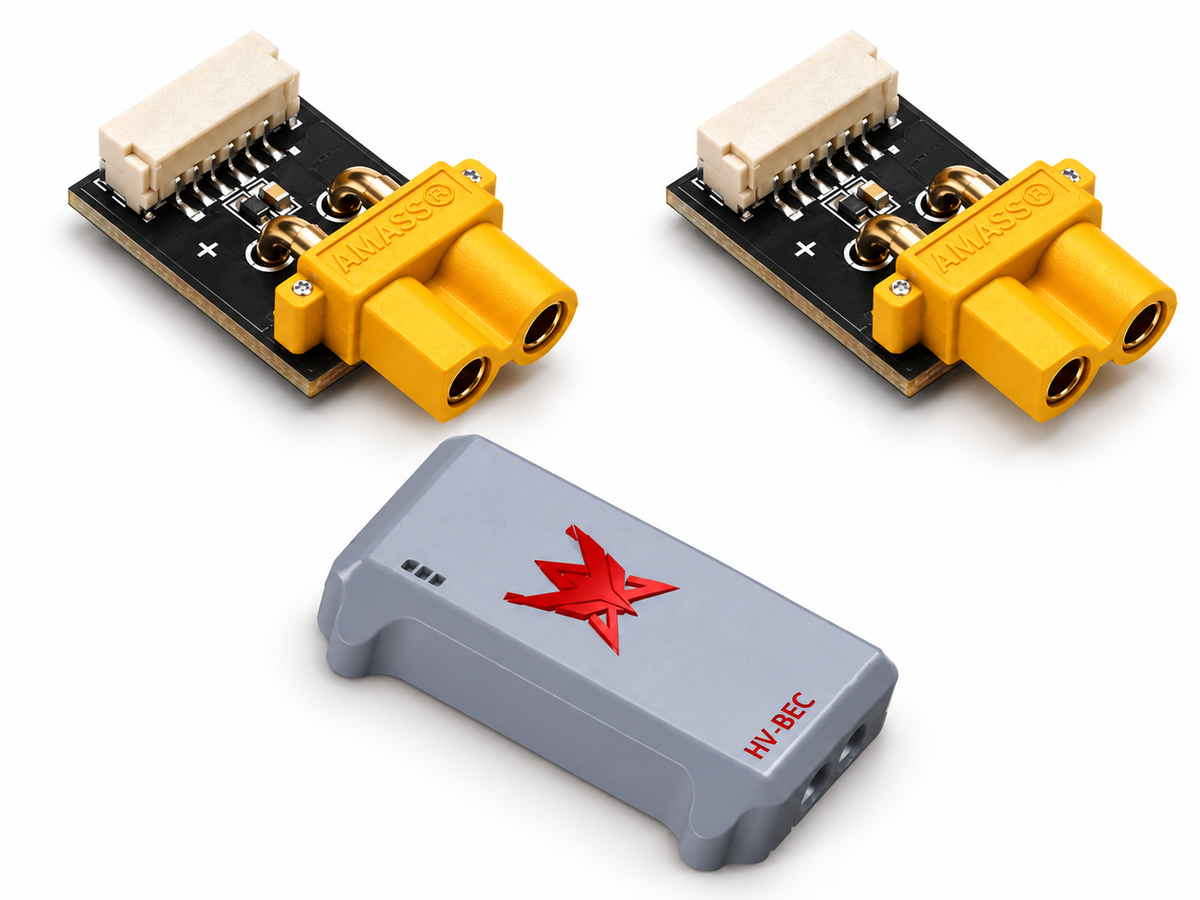

• Nylon 3D print housing for quick heat dissipation

Specifications

• Input voltage: 3~24S
• Output voltage: (3.3V/5.3V/9.0V/12V/24V/28V/32V) (Adjustable )
• Output Current

  • Continuous: 7A

• Size: 30x65x7 mm

• Weight: 27.0g

Dimension:
